RR RACING 4T 350

RR RACING 4T 350

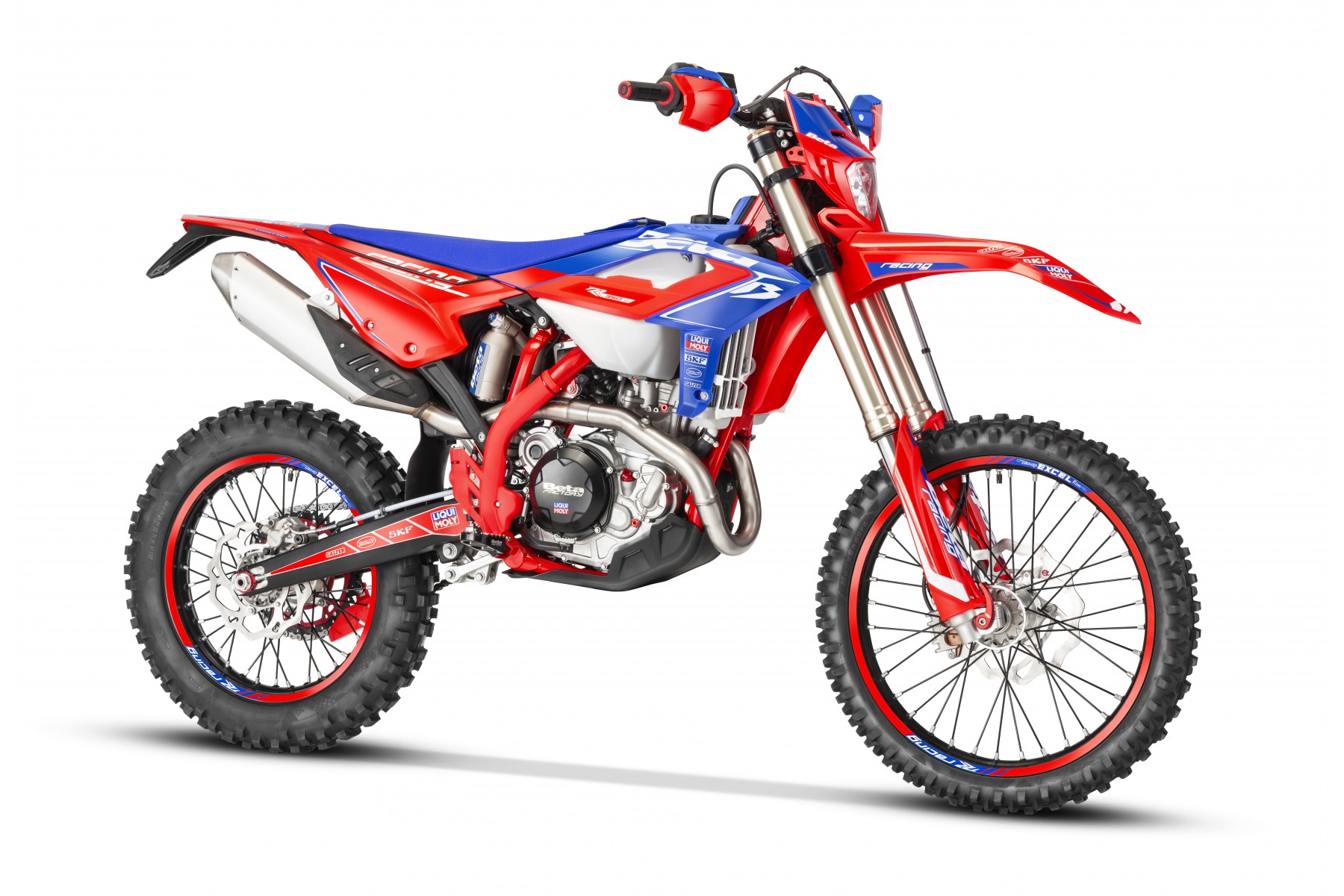

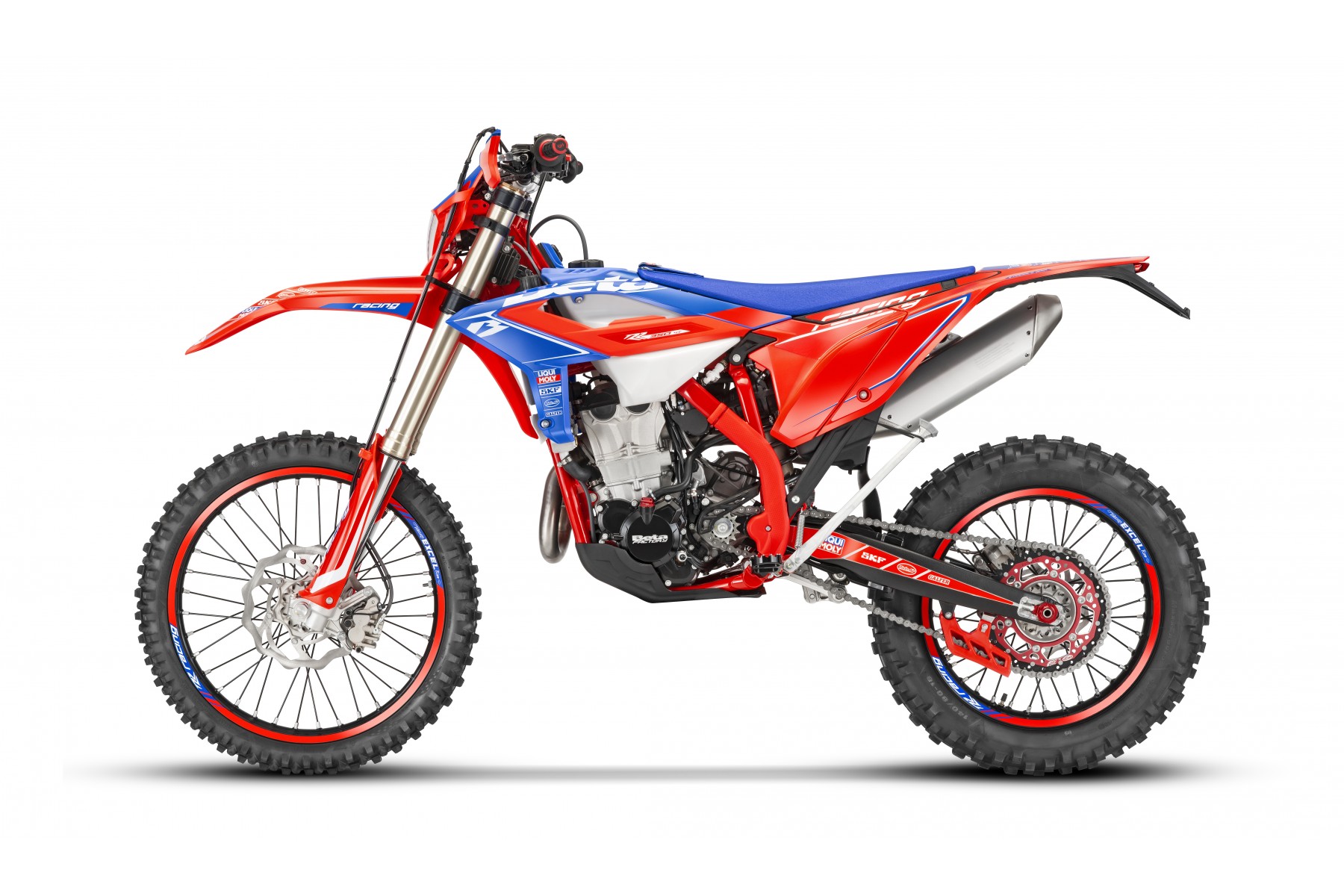

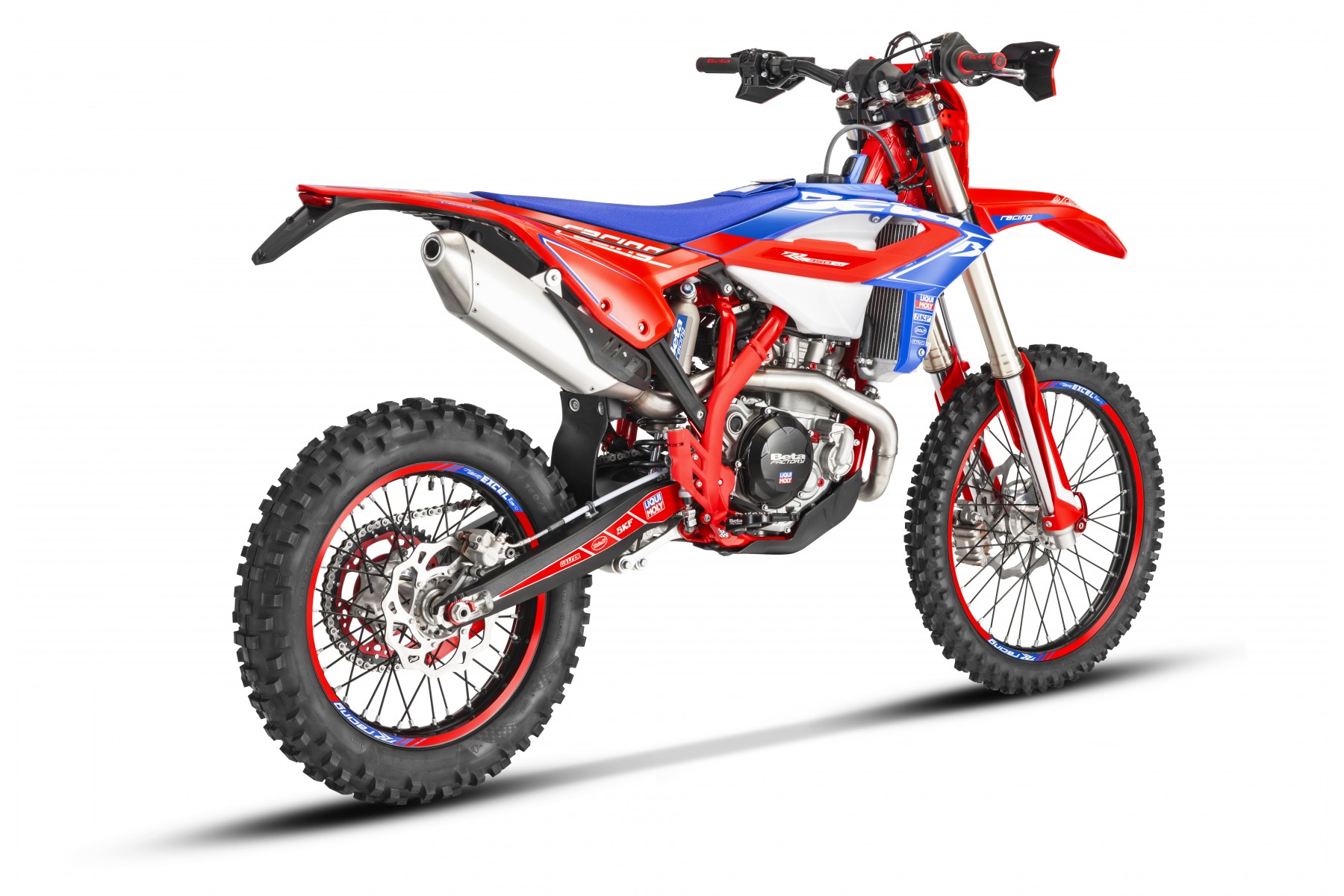

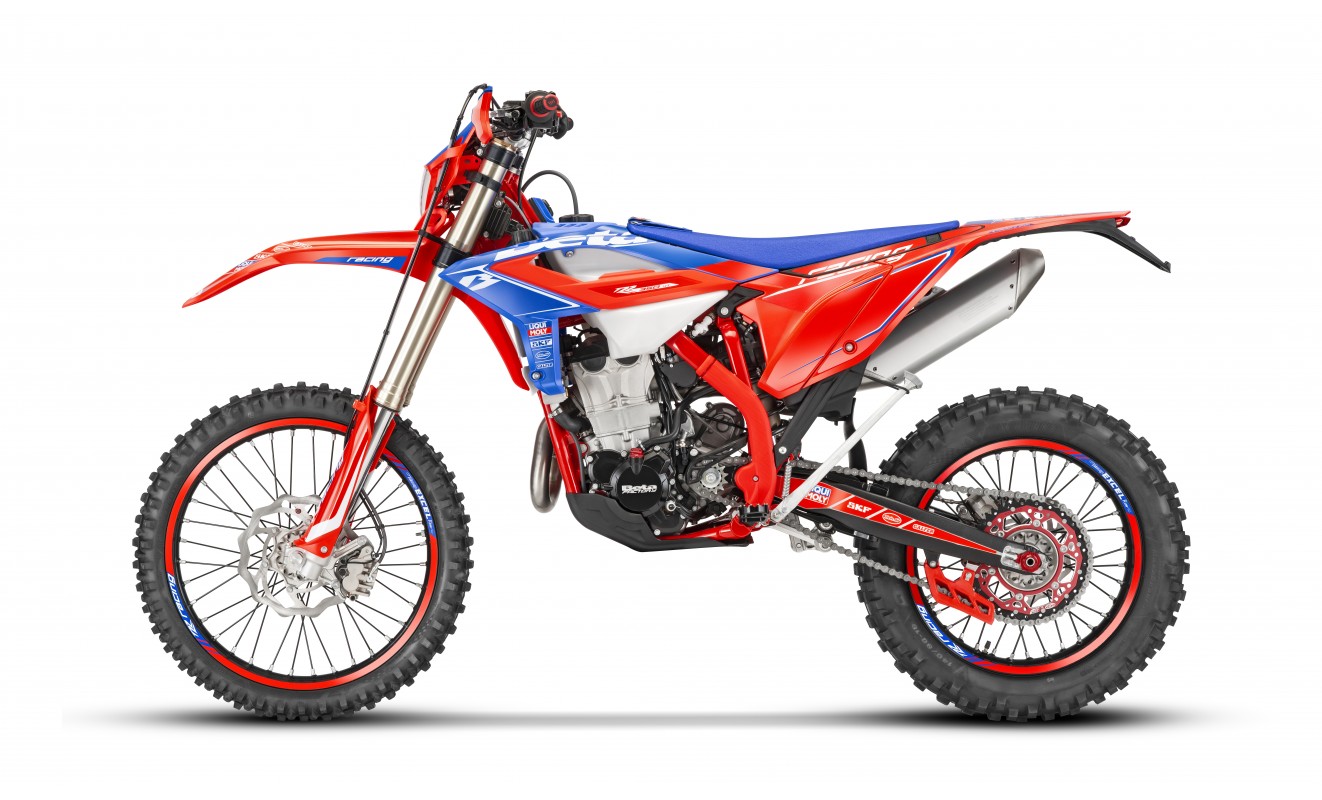

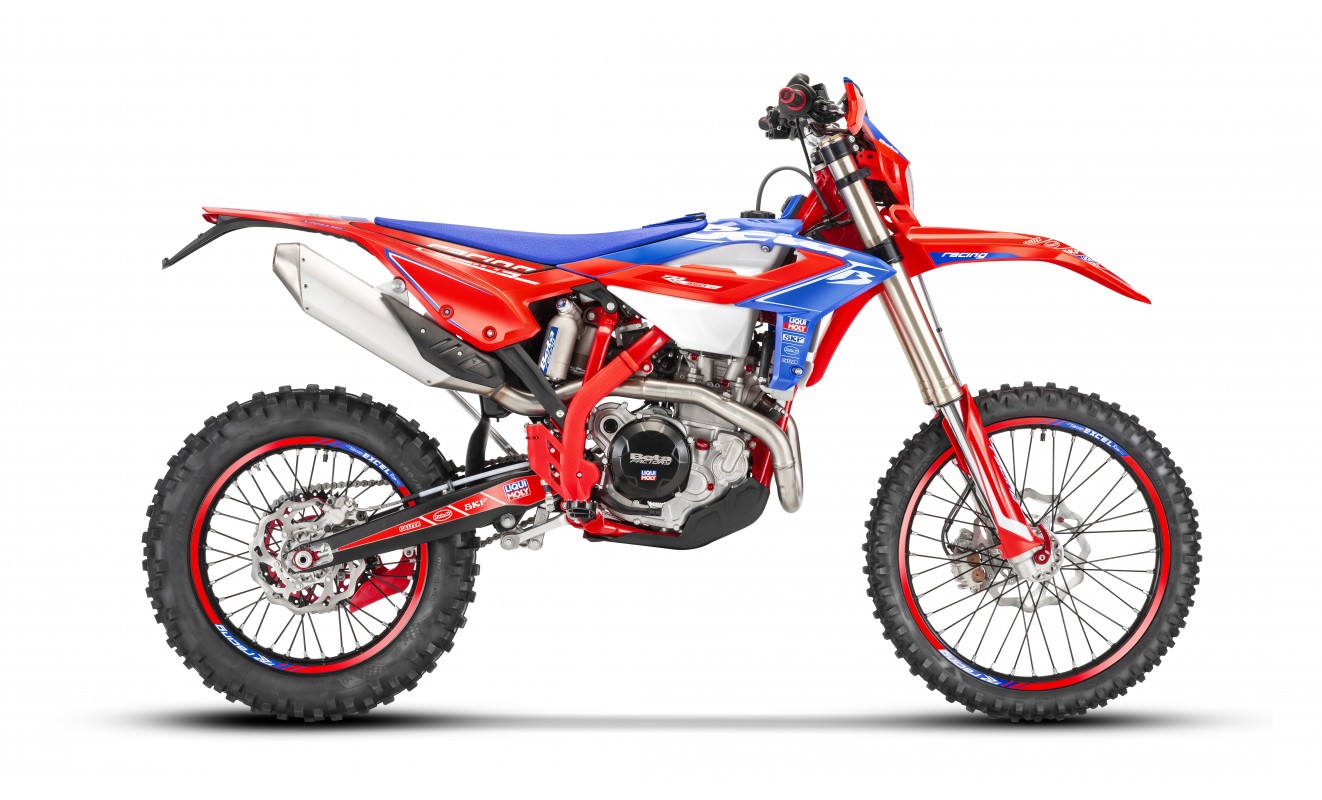

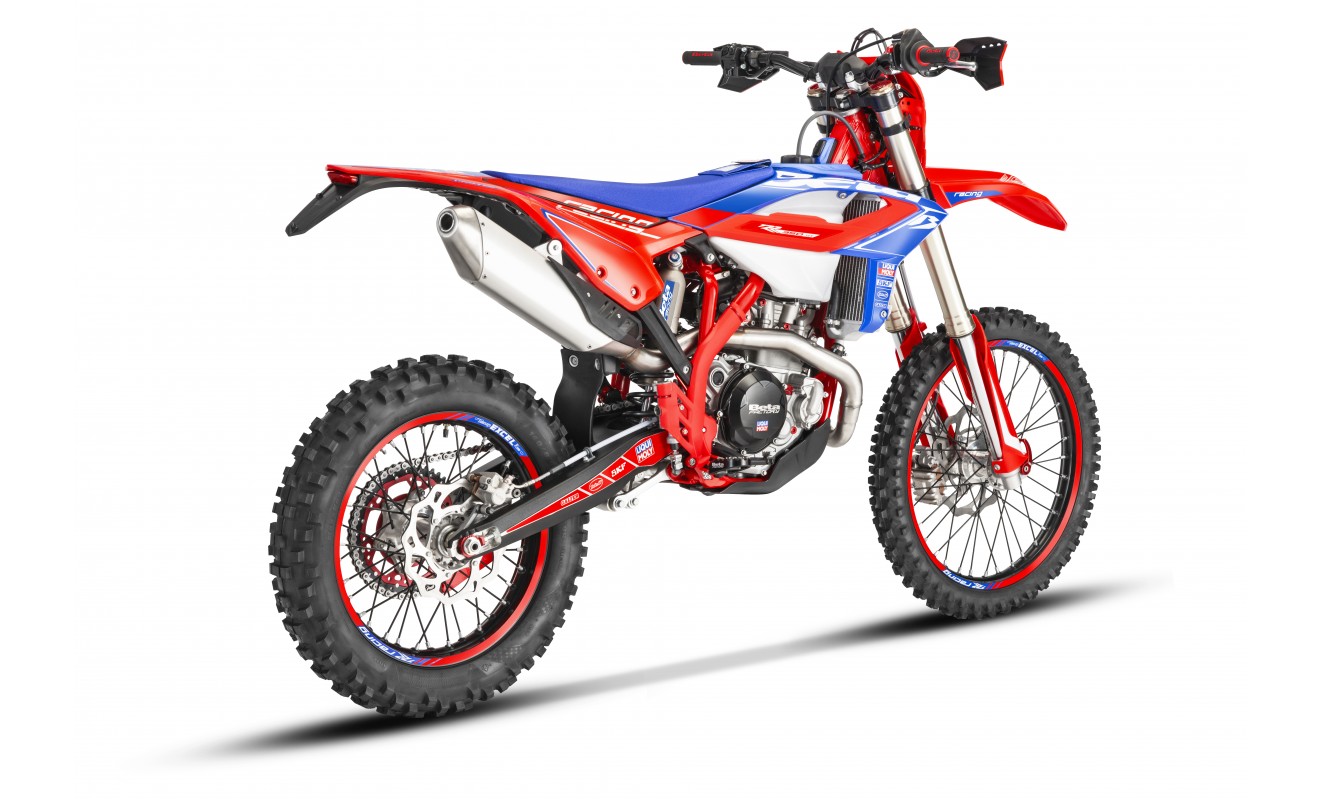

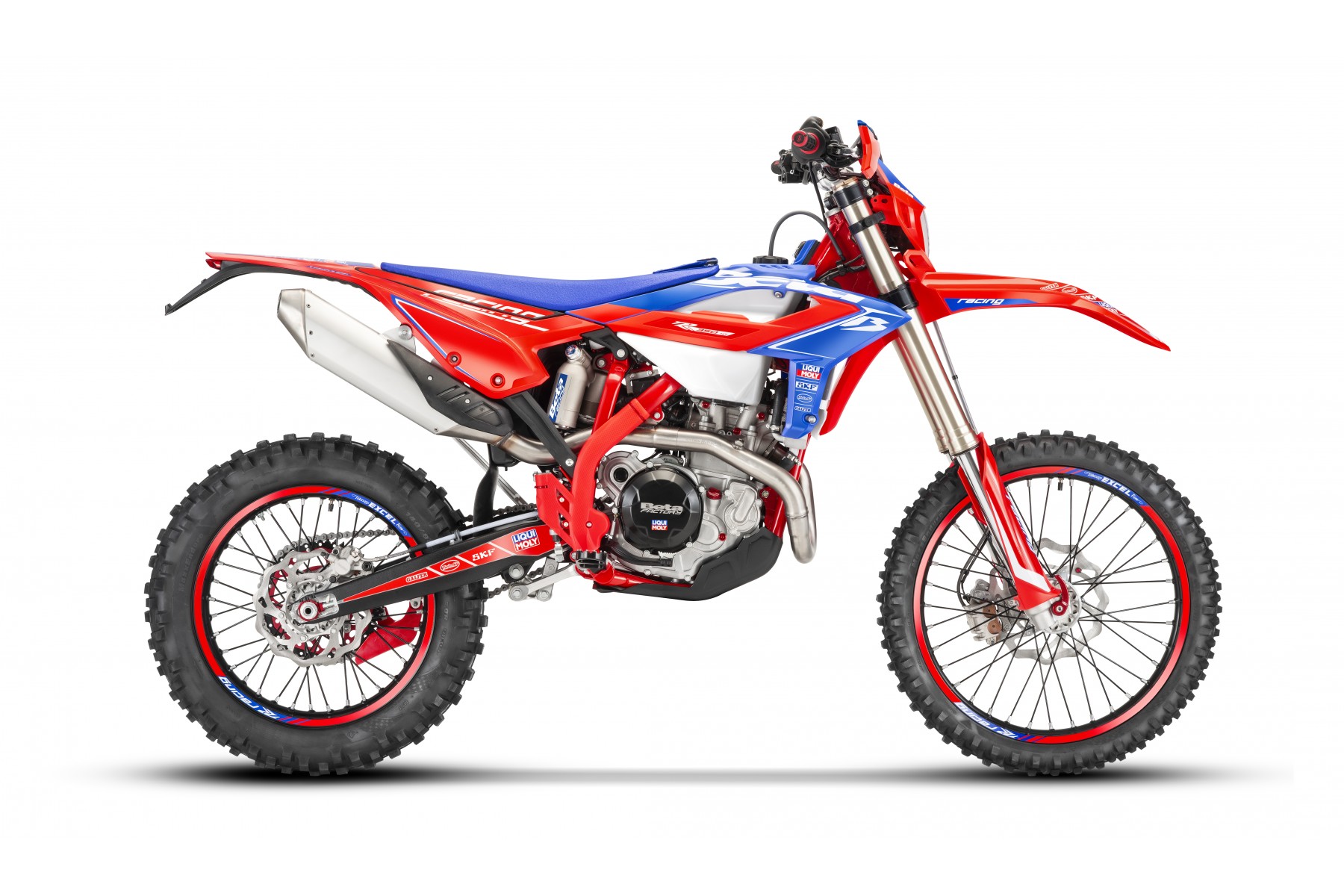

RR RACING 350 4T MY 2023

An all new level or performance


Autumn has arrived – and as usual Betamotor presents the new RR Racing My 2023 to warm the hearts of Enduro fans! In keeping with Beta traditions, the RR Racing range of bikes come complete with everything needed to transform the Enduro models of the Tuscan brand into machines ready to race in the toughest conditions and the most competitive events.

The main new feature of the 2-stroke and 4-stroke Racing My 2023 models is the introduction of the Kayaba (KYB) rear shock, specially made by the Japanese suspension experts for Betamotor’s Enduro bikes. It benefits from the best materials and the most modern research carried out together with Beta engineers, enabling a major evolutionary step in the bike’s suspension. The Racing model range is finished off with new Racing graphics, highlighting the sleek shape of the new radiator shrouds introduced on the RR a few months ago, and a number of different components, such as the handguards.


350cc

This is the easiest-to-handle bike in the 4-stroke model range; it favors high-rev riding yet retains a very linear power output.

The racing pedigree of the sportiest version of Beta’s Enduro range is evident in the RR Racing My 2023 in a number of ways:

Racing components

• Quick release front axle: immediately recognisable by the red anodised alloy release lever, the axle is crucial for saving precious seconds in a race when you need to change a tyre.
• Reinforced handguards: The new handguards, designed and manufactured in-house by Betamotor, feature a two-component material mould, in red and blue, which not only give the bike a racing look but also make them especially hard-wearing in even the roughest off-road use.
• Metzeler tyres: the bikes of the Racing range are fitted with the same tyres used by the official team riders in the EnduroGp championship. High-end products with championship-winning levels of grip!
• Ergal alloy footpegs: to ensure maximum control at all times and ensure no loss of contact with the bike, the RR Racing models are fitted with black ergal racing footpegs with steel pins, featuring a large contact surface area.
• Rear sprocket with anodised aluminium core and steel teeth by ZF Sprockets: top-class performance, lightness and strength – the perfect mix of all the attributes any racing component must have.
• Dedicated blue racing seat: an anti-slip cover and built-in pouch offering unparalleled grip, comfort and practicality.
• Anodised black gear lever and rear brake pedal.
• Gearbox oil filler cap, engine oil filler cap and oil filter cap anodised red aluminium.

• Chain tensioners in red ergal alloy.
• New Racing graphics and red and blue wheel decals.

Suspension
• 48 mm Kayaba AOS closed cartridge fork: on the suspension front, the My 2023 retains the closed cartridge fork by KYB. This product has been continuously honed through collaboration between Beta and Kayaba, giving shape to a highly specialised component that not only maximises the performance of RR Racing bikes, but also makes this performance even more accessible. Anodised internal parts and the new treatments administered to the materials minimise sliding friction, while adjustable compression and rebound damping let each rider find the perfect customisation of the setting. Betamotor engineers have recalibrated the setting so that the fork works optimally in synergy with the new rear shock.

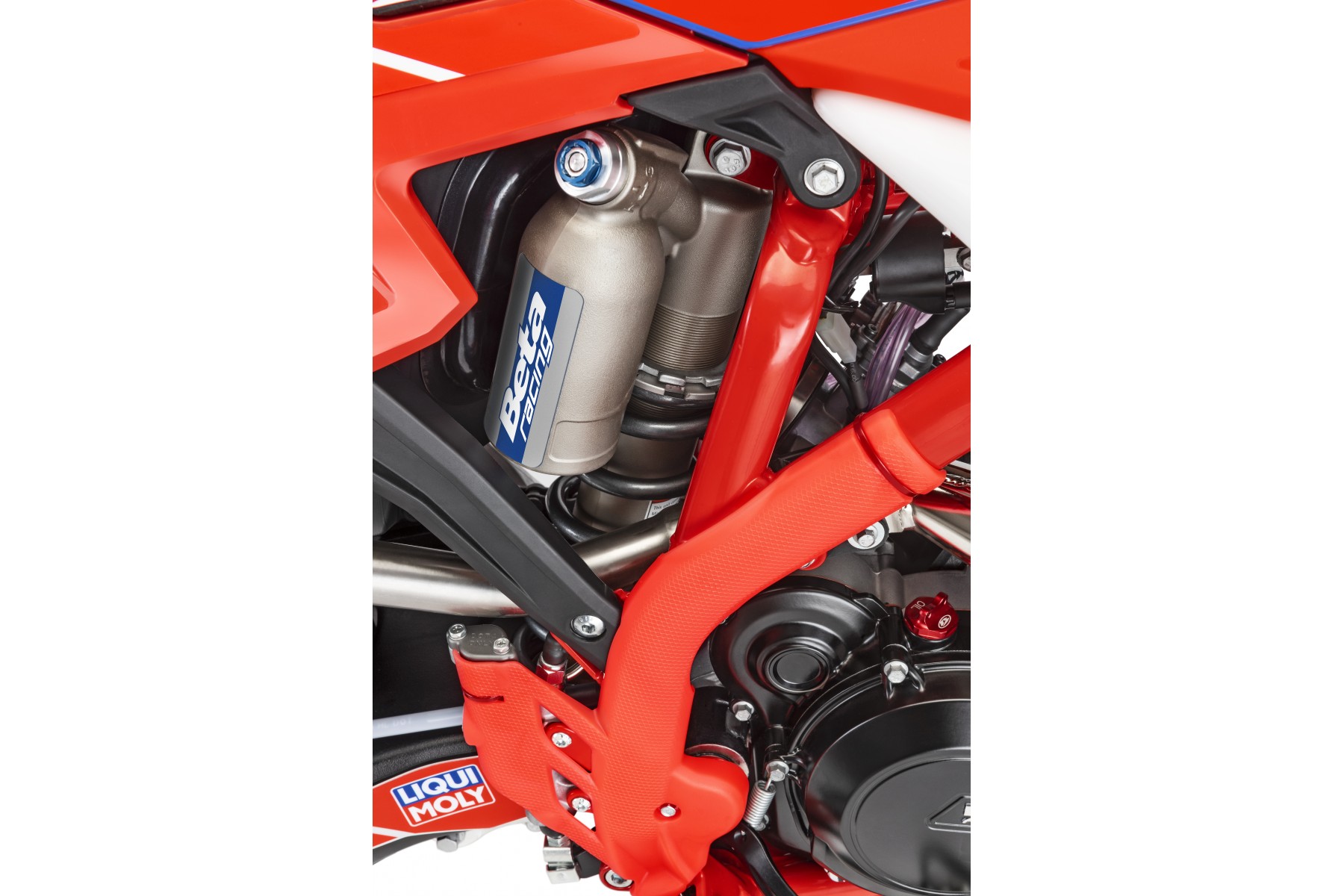

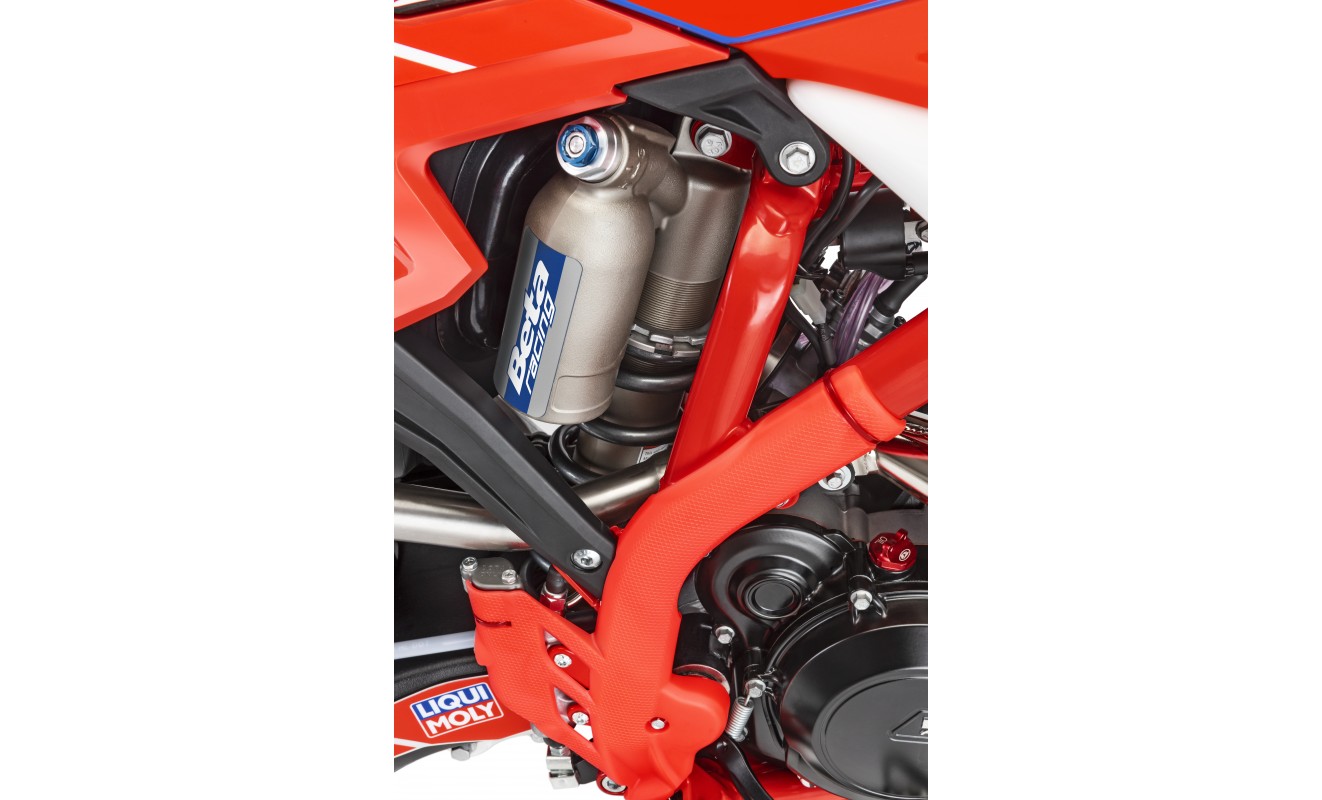

• Kayaba C46 RCU Mono: The main change as far as the suspension of the RR Racing models is concerned is the first ever use of a Kayaba rear shock, specifically designed and manufactured for Beta’s 2 and 4-stroke RR Racing models. The new shock’s hydraulic setting can be fully customised by adjusting the external compression (both high and low speed) and rebound settings.

The joint research of Kayaba engineers and Betamotor’s R&D department in Rignano sull'Arno led to the development of a shock that is particularly effective in enhancing the dynamic aspects of the vehicle, under all conditions of use. KYB shocks are seen as a gold standard in the racing scene in terms of its ability to absorb the roughness of the terrain, the level of traction transferred to the vehicle and the consistency of performance even under particularly heavy use, where the high temperatures generated by the suspension’s damping activity tend to make the component’s performance fluctuate. There has therefore been an improvement in the bikes set-up, both in racing use (for which the setting is intended) and in more amateur use, where there is an overall increase in ride comfort.


Traction Control - 4Str Range

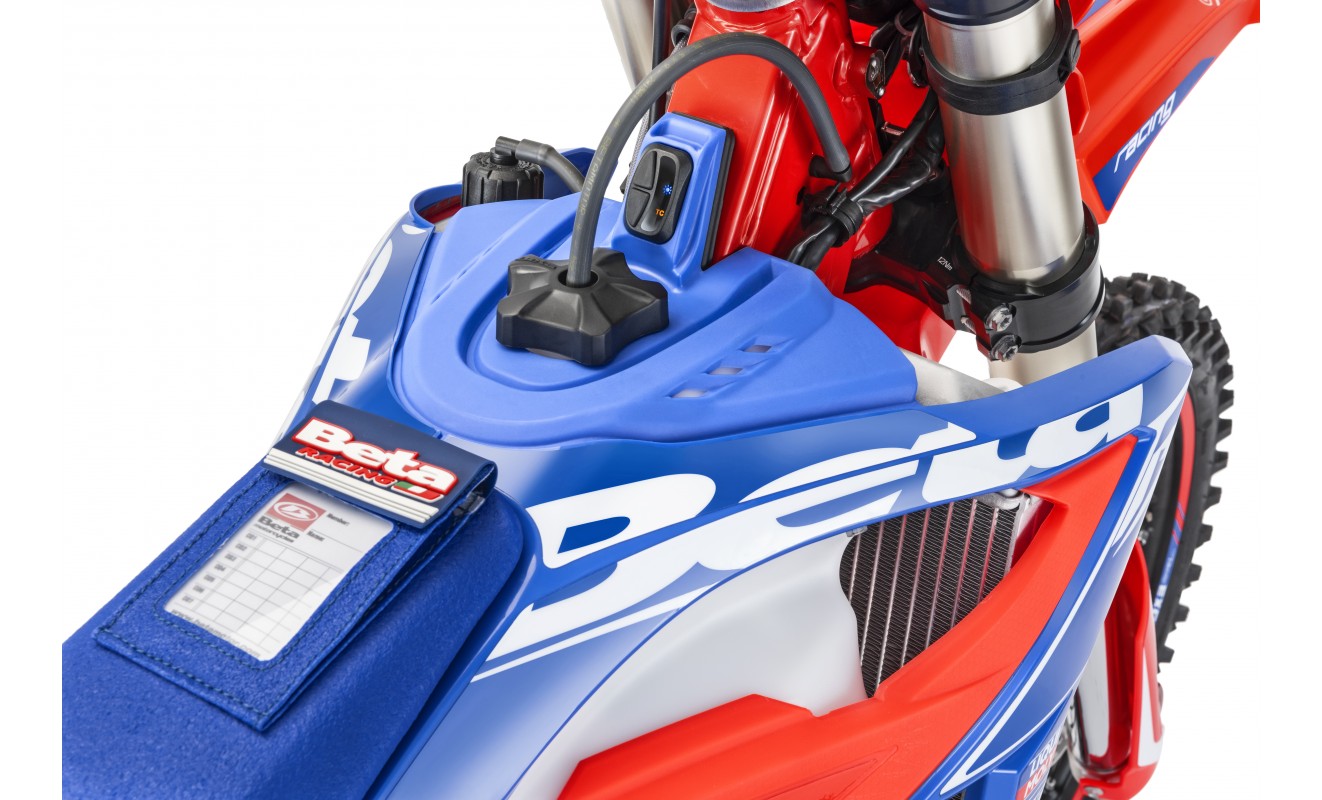

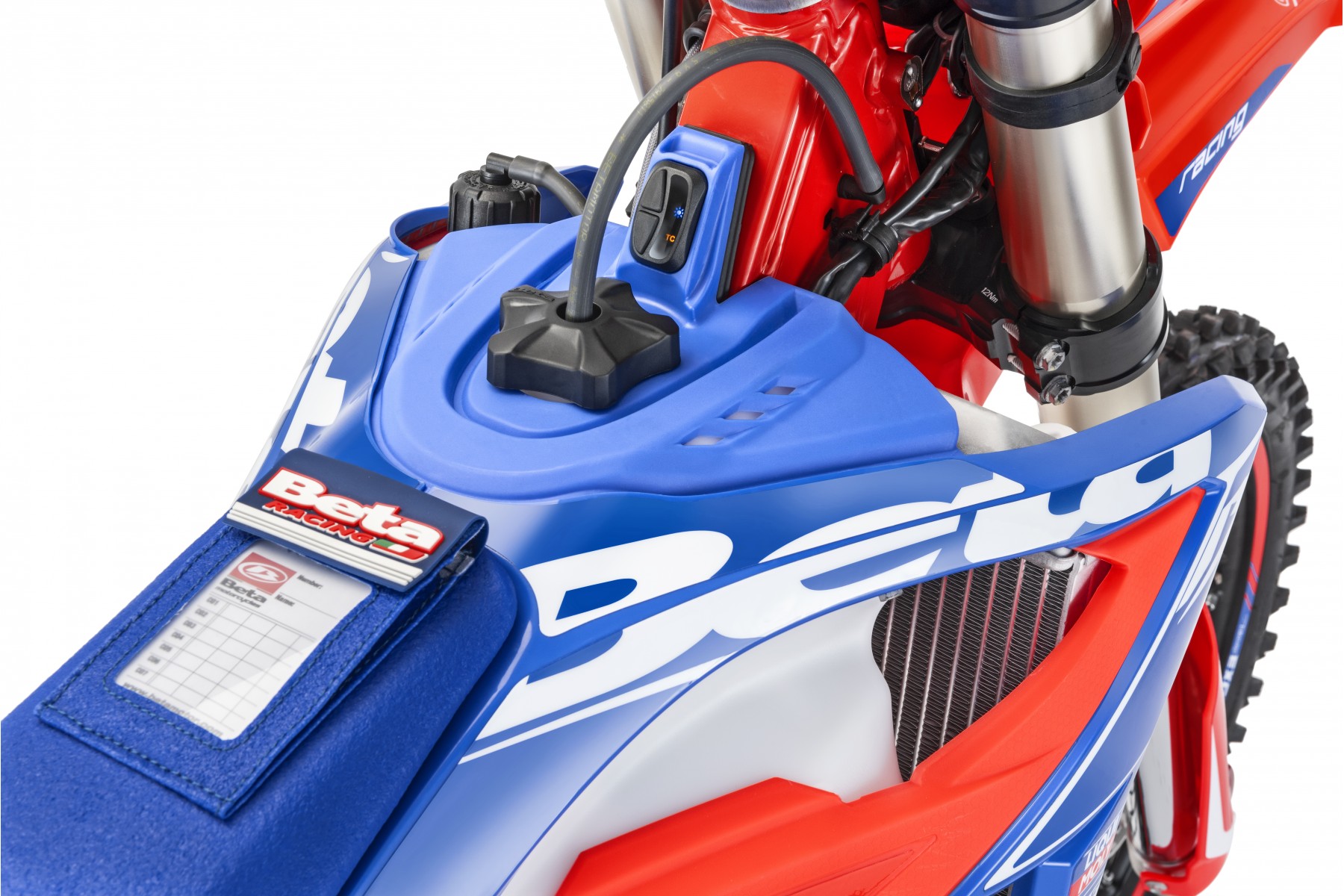

To make the performance of its models, and of its bigger displacement bikes in particular, ever more accessible to the rider in any situation, in addition to user-selectable electronic engine management maps, the RR Racing features the traction control function. The Traction Control function can be engaged at any time from the usual button on the control panel between the steering tube and the fuel tank. As both the TC function and engine map selection function are controlled from this panel, it has two control buttons and two separate indicator LEDs for the two functions.


Available from: October 2022













TECHNICAL DATA

Chassis

Max Height 1270 MM
Frame Molybdenum steel with double cradle split above the exhaust port
Wheelbase 1490 MM
Max Length 2180 MM
Max Width 815 MM
Seat Height 940 MM
Ground Clearance 320 MM
Footrest Height 413 MM
Dry Weight 107,5 kg (front 52,7 kg; rear 54,8 kg)
Fuel Tank Capacity 9.0L
Front Suspension Hydraulic USD fork with ø 48 mm shaft
Rear Suspension Monoshock with progressive compound lever

Engine

Type Single cylinder, 4-stroke, liquid-cooled
Bore 88 MM
Stroke 57.4 MM
Displacement 349.1 CC
Starter Electric starter
Fuel System InSynerject dual electronic injection duction Reed
Lubrication 2 oil pumps
Throttle Body Ø 42 mm - Synerject
Clutch Wet multi-disc clutch
Transmission 6 Gears
Engine Oil SAE 10W/40
