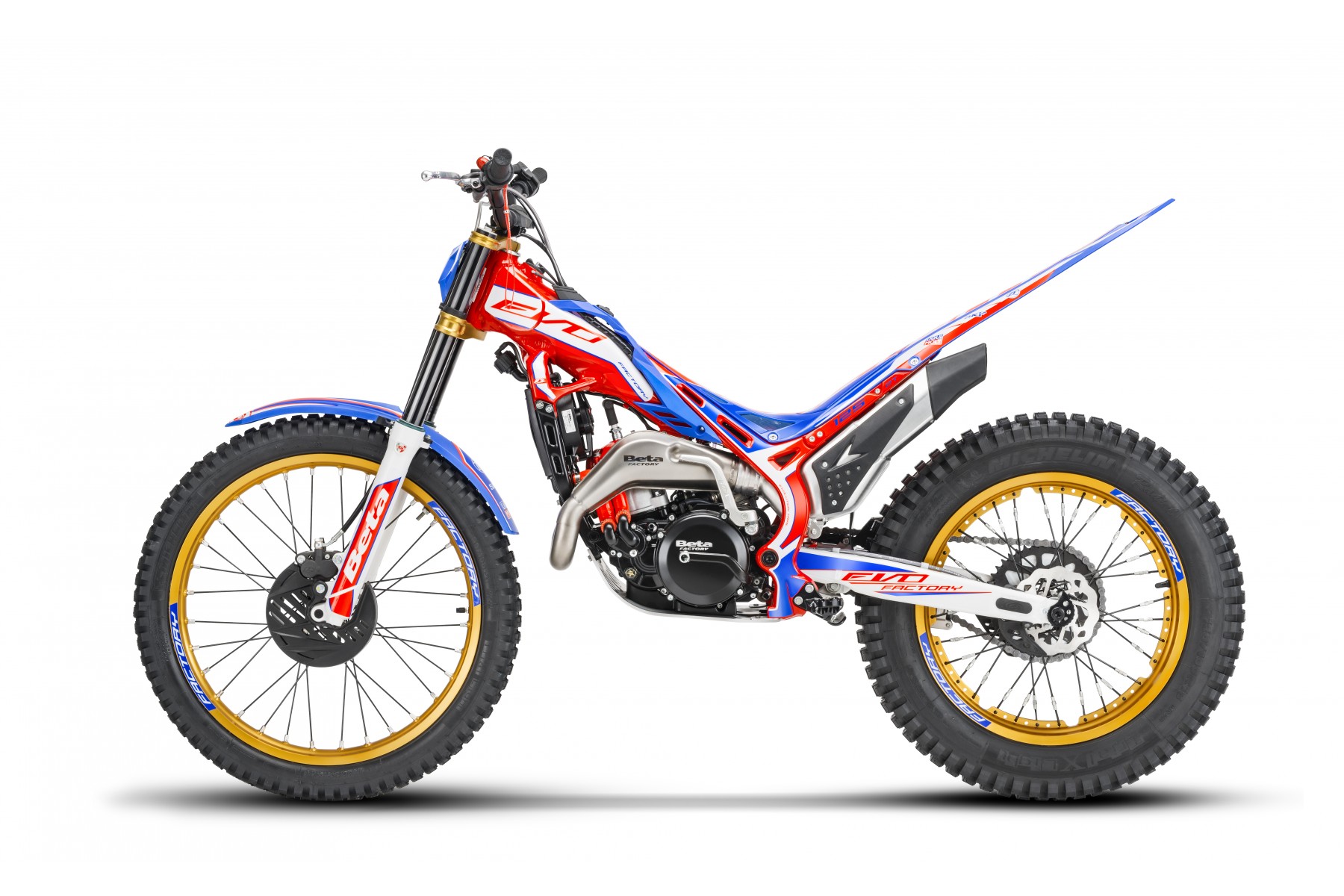

EVO FACTORY MY 2022

Beta reveals the new version of the best-seller Evo Factory My 2022.

Now that winter is over, we're all eager to get back on the saddle and fire up the engine. Giving shape to this anticipation built up over the past few months, Beta presents the most high-performance version of the EVO family yet - the new Evo Factory My 2022.

Working in close collaboration with the Beta Factory Team and the riders Matteo Grattarola, Lorenzo Gandola, Sondre Haga and Aniol Gelabert, the R&D division has taken the performance of the Evo Factory to even greater heights, further honing a model that has evolved over time while remaining the benchmark in its class and the bike to beat in world championships. The result is a machine whose spirit and style embody the essence of racing.

The EVO range is one of the most extensive in this class, and offers a total of four different Factory versions created to meet the needs of every possible rider:


ENGINE

The differences between the engines equipping Factory versions and standard version are listed below:

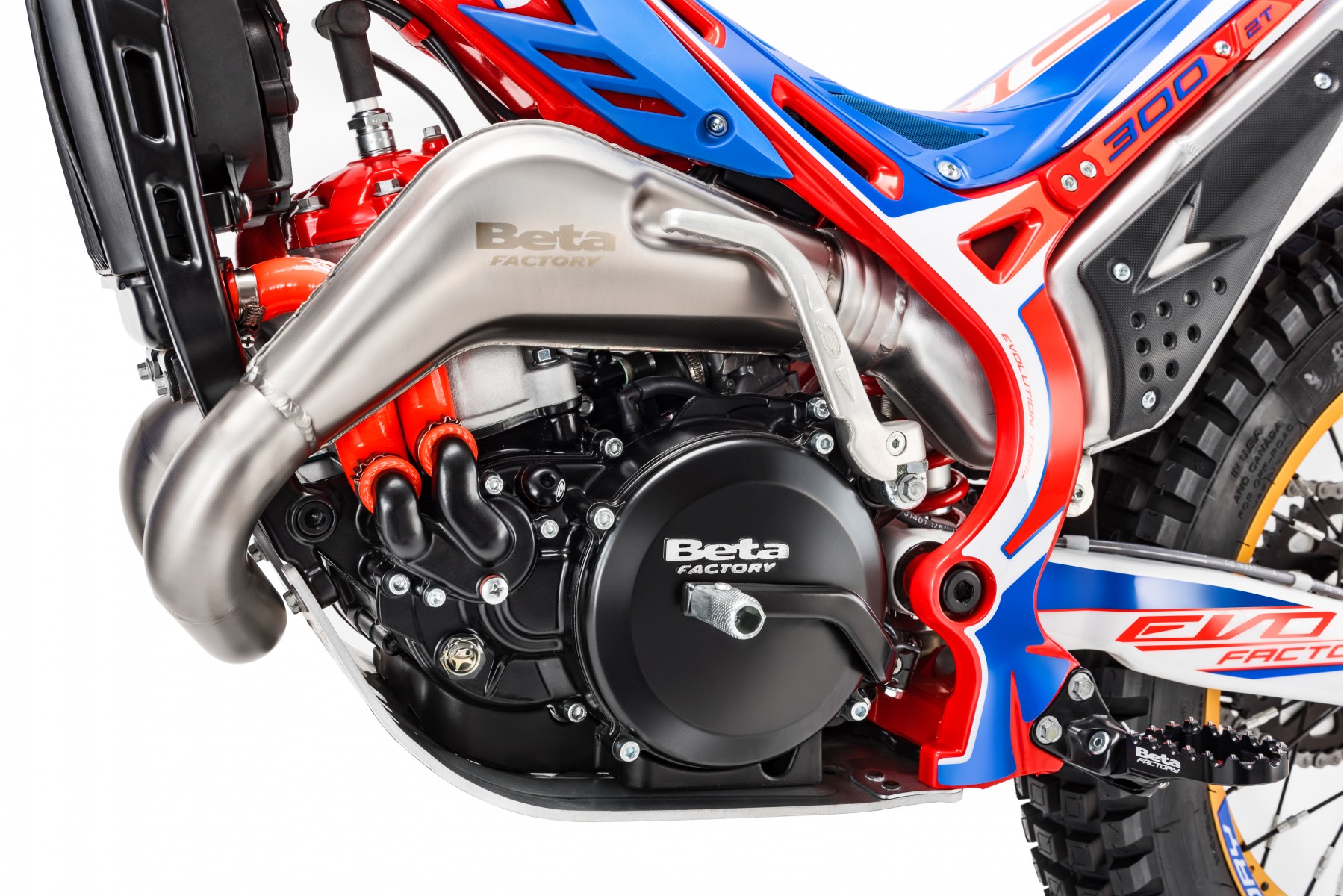

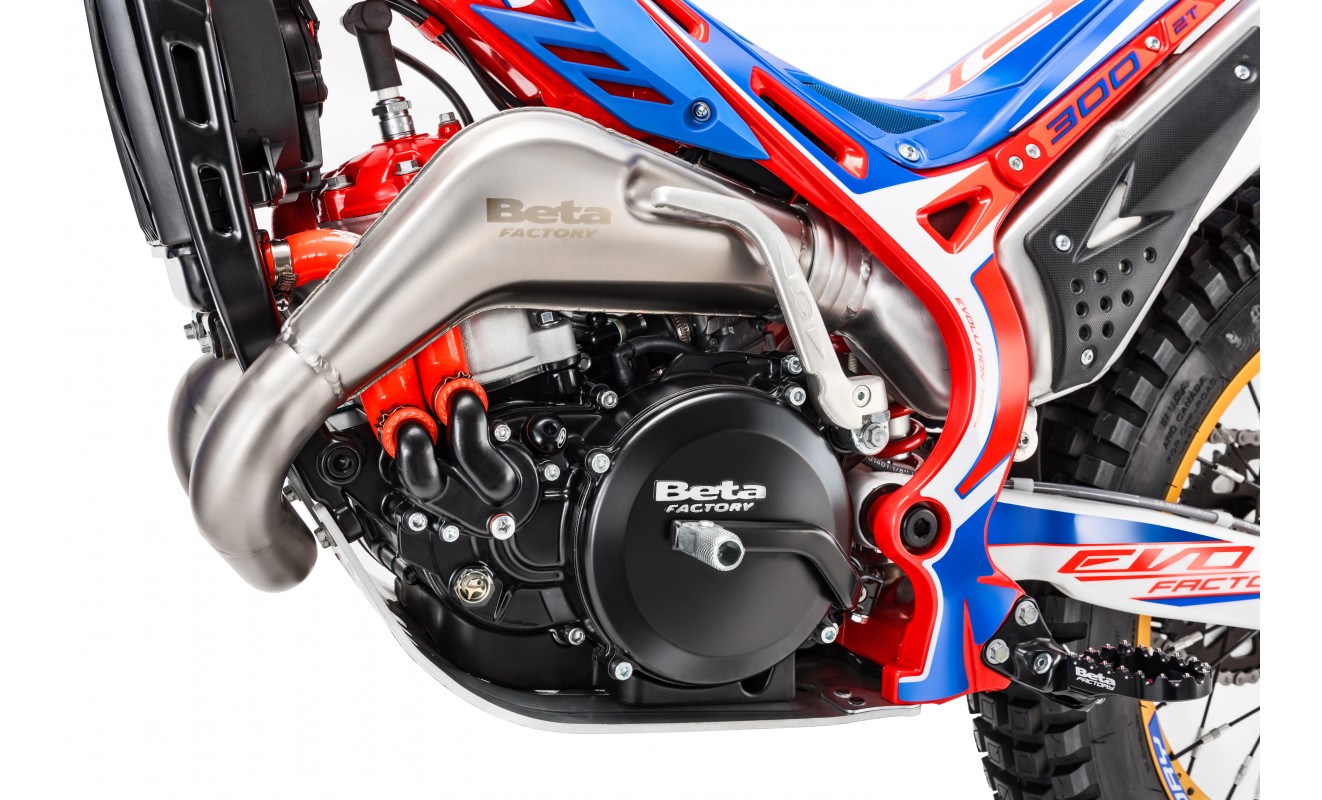

2-stroke

  • Magnesium crankcase with black finish: featuring a particularly eye-catching design, this component contributes significantly to reducing weight, maximising the agility of the bike.
  • Titanium header: increases performance over the standard version while also reducing weight (conical cylinder connector flange on 125 cc model only).
  • Trimmed clutch discs: created specifically to maximise clutch precision and controllability in every possible situation and make even the most advanced repetitive tricks easier to manage, such as the rear wheel hops typical of today's riding style - ensuring extreme precision every time.
  • Cylinder with optimised transfer port geometry: accentuates the racing soul of the engine to offer more full-bodied torque and improved responsiveness without compromising linear power delivery.
  • Head with dedicated volume and squish band (300 cc only): to take performance even further, the cylinder of the 300 version features a more advanced head. The red paint finish underscores the “factory” look of the bike.
  • Optimised engine control unit maps: ensuring outstanding low-end grunt without sacrificing power at mid to high engine speeds.
  • Black anodised engine oil plugs.

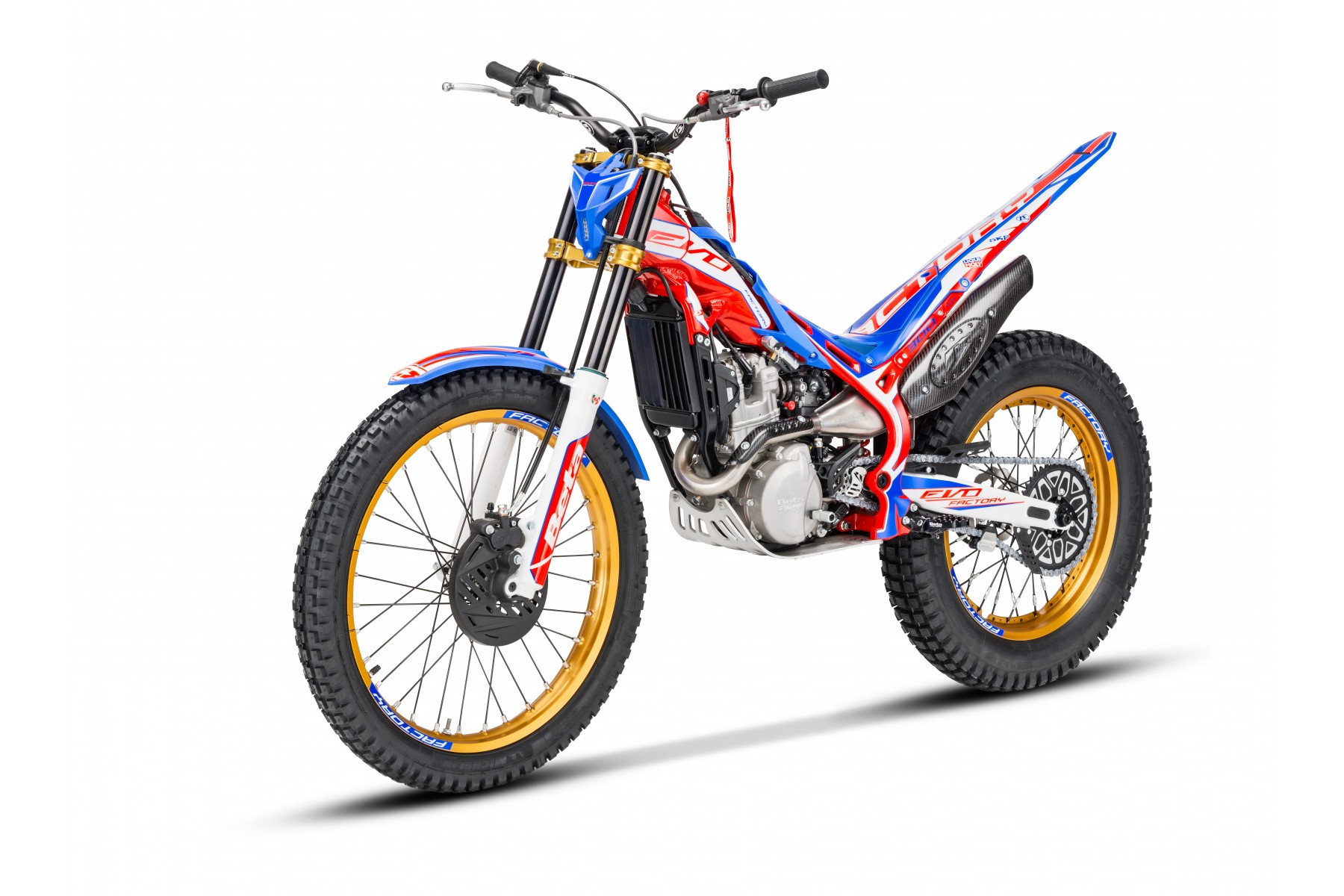

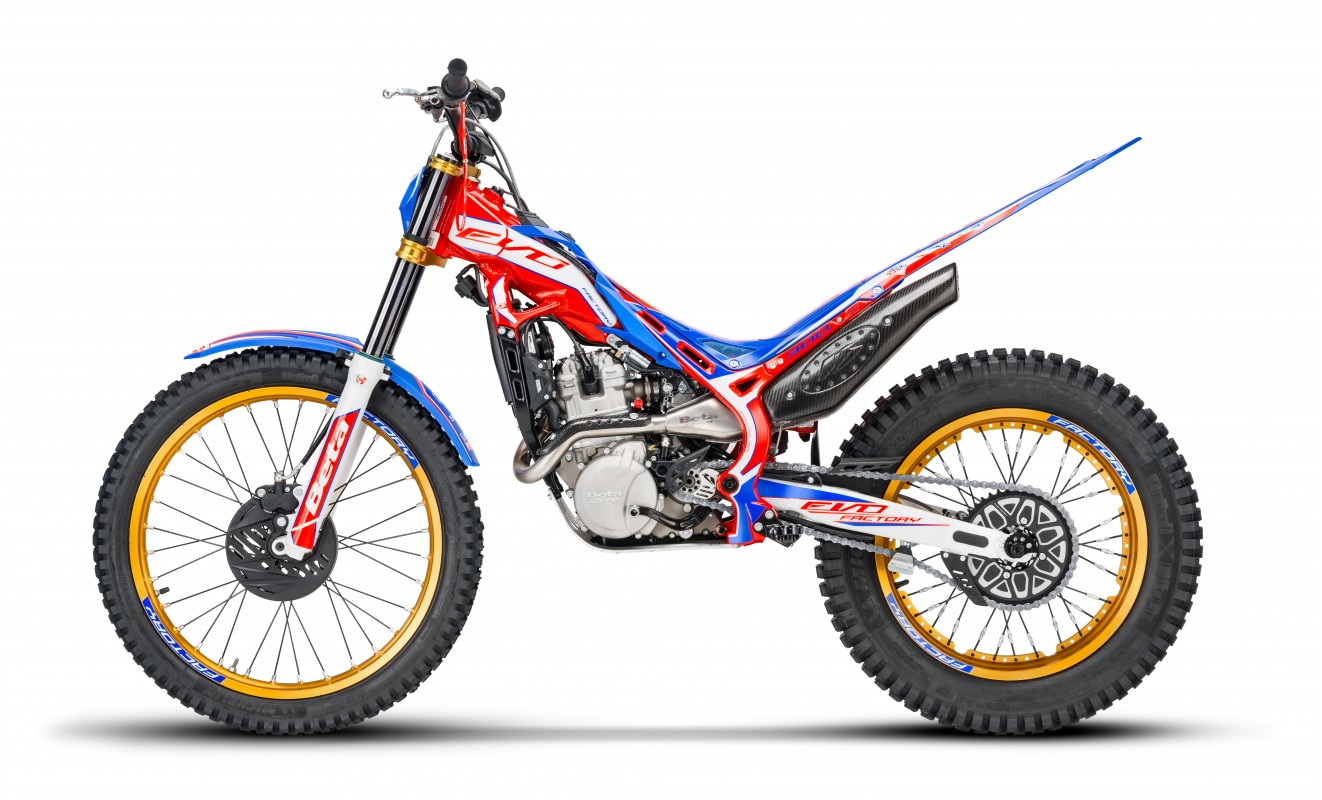

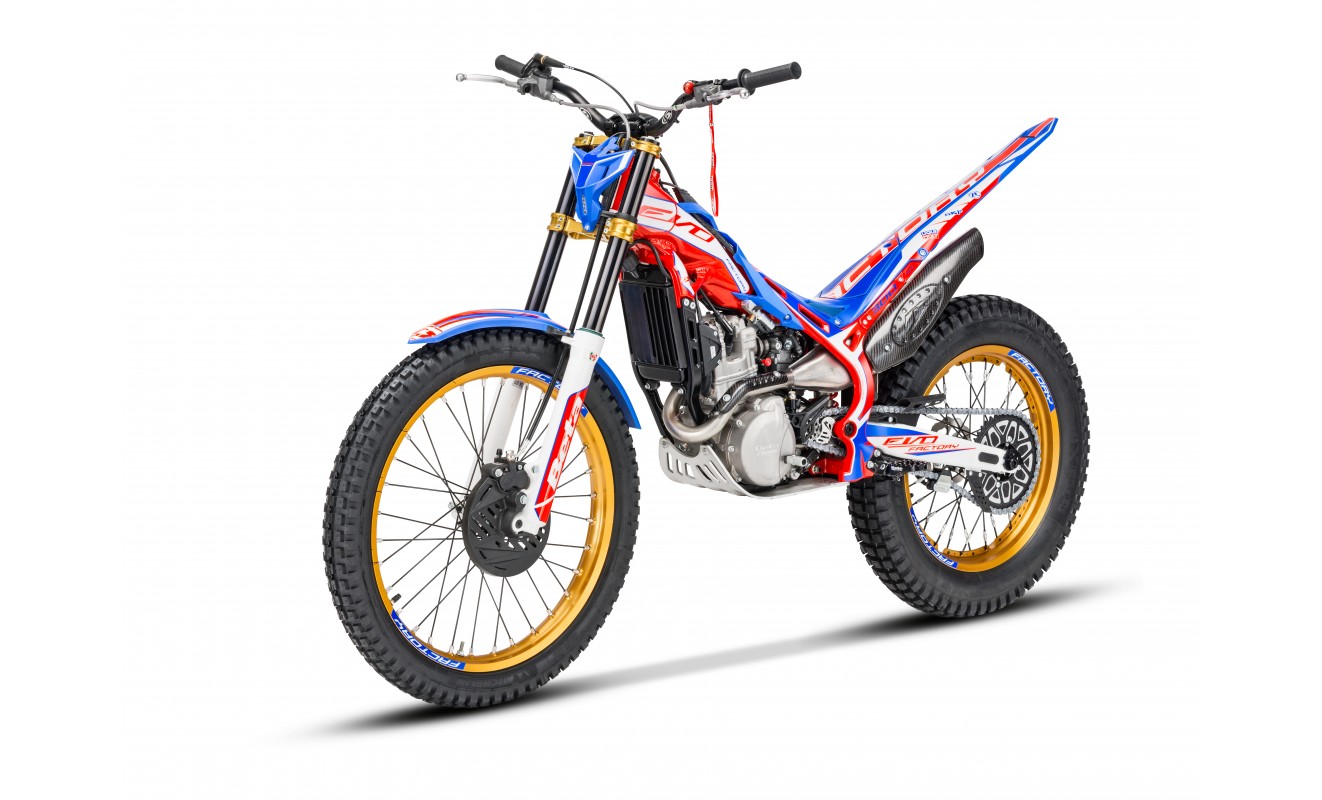

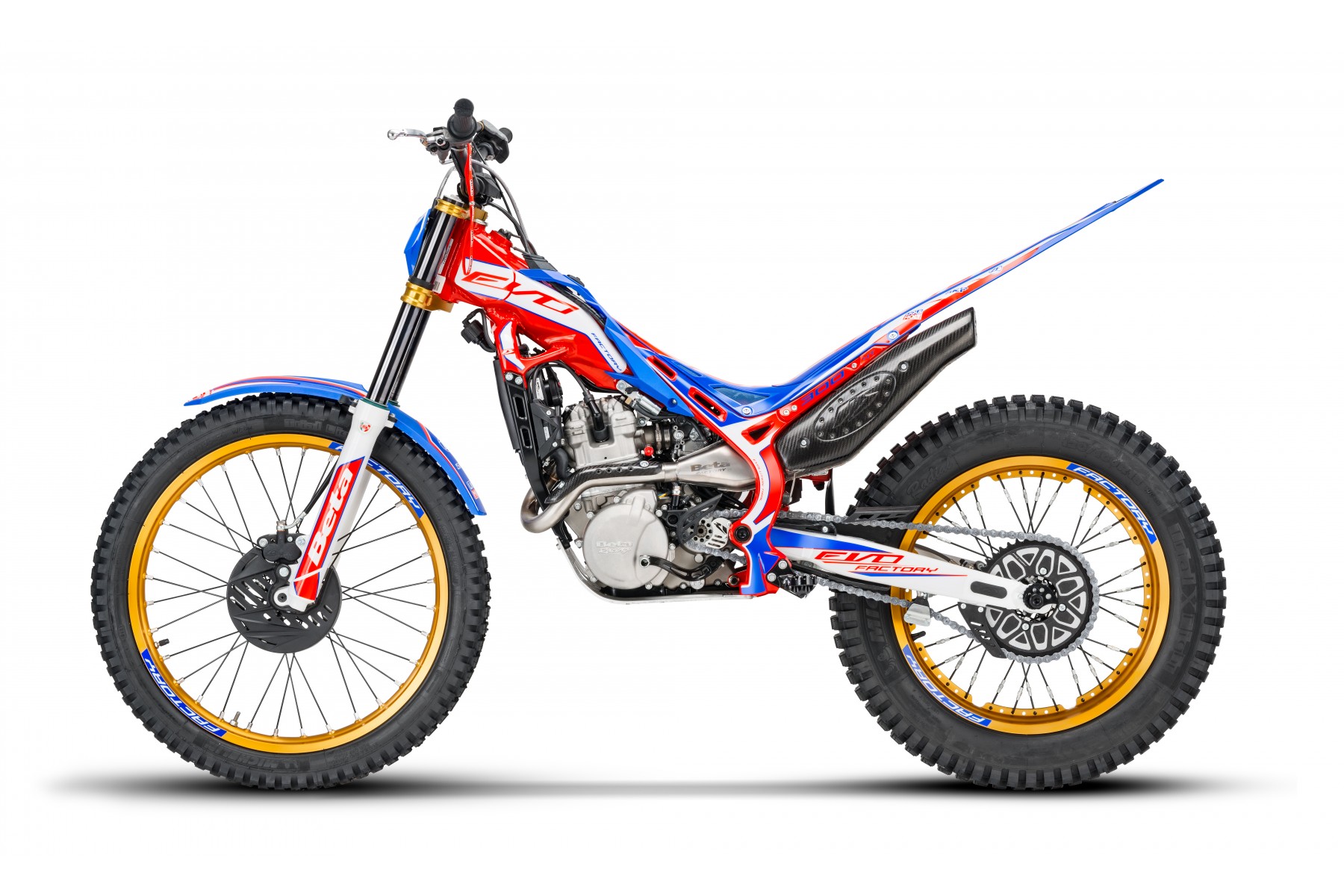

4-stroke

The 4-stroke Factory variant also benefits from a series of upgrades relative to the standard EVO version. The electronic control unit now operates at a higher power rating, which translates to improved spark stability and improved combustion at all engine speeds. In keeping with its more potent engine, the EVO Factory is also equipped with a lightweight performance titanium exhaust silencer.

FRAME AND SUSPENSION

In terms of frame, suspension and design, the new Evo Factory My 2022 differs from the standard version as follows:

  • Front fork with modified elastic response and compression adjustment characteristics: even more progressive hydraulic damping response offers advantages both when absorbing shocks from the terrain and when the rider compresses the fork to bounce onto obstacles.
  • Mono-shock with optimised spring guide geometry and red spring: the characteristics of the rear mono-shock have also been optimised to soak up the biggest shocks more effectively, making the bike easier to control for the rider in even the most technical situations. This has been made possible by using a more deformable bush which allows more room for expansion, and by the availability of a number of different compression and rebound damping settings.
  • Progressive linkage: the configuration of the rear suspension progressive linkage is optimised to ensure maximum traction and superior feel.
  • Steering yokes machined from billet alloy with gold anodised finish: ensuring superlative stiffness and lightness, the steering yokes also feature fore-aft adjustable handlebar brackets to let any rider set up the ideal riding position.

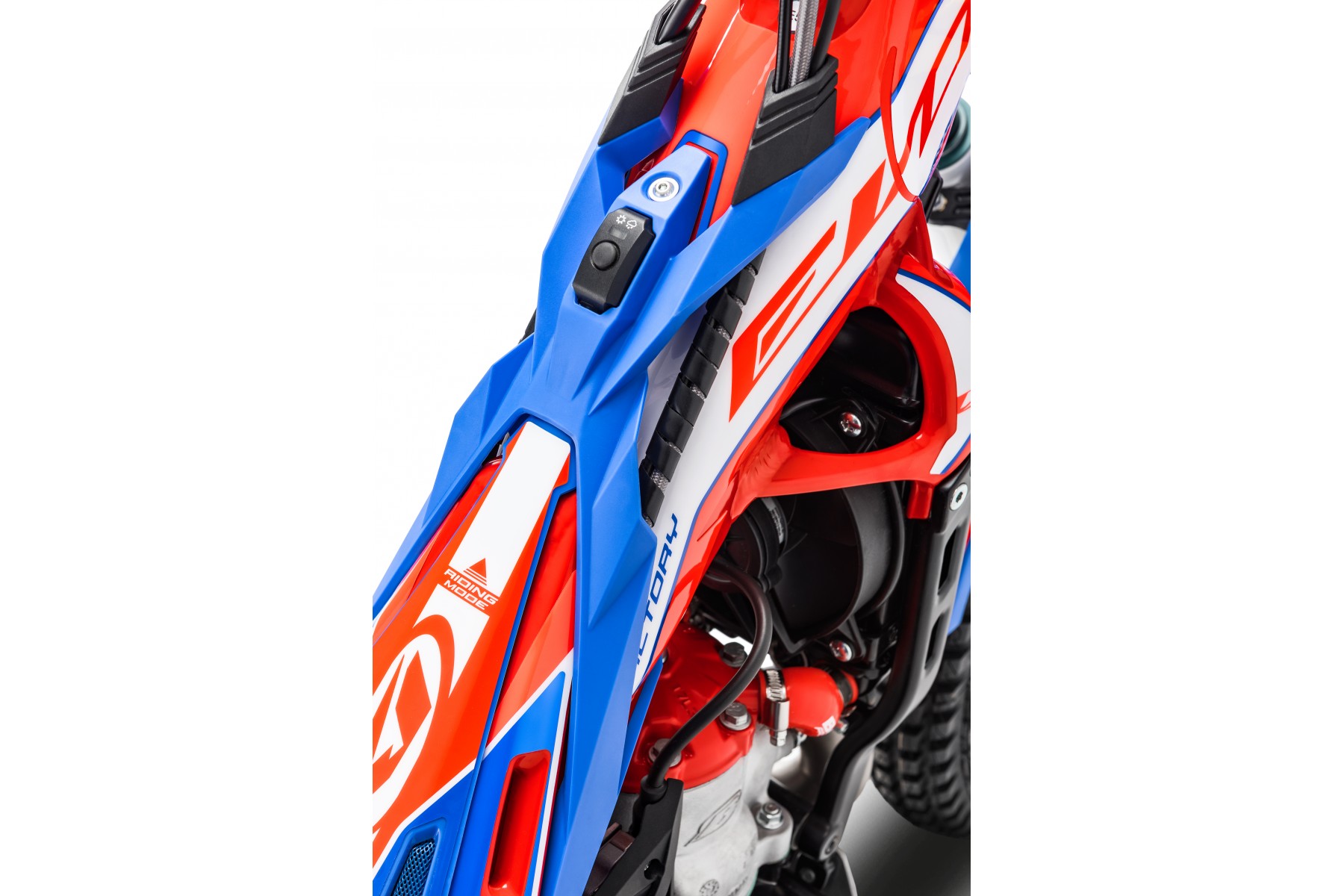

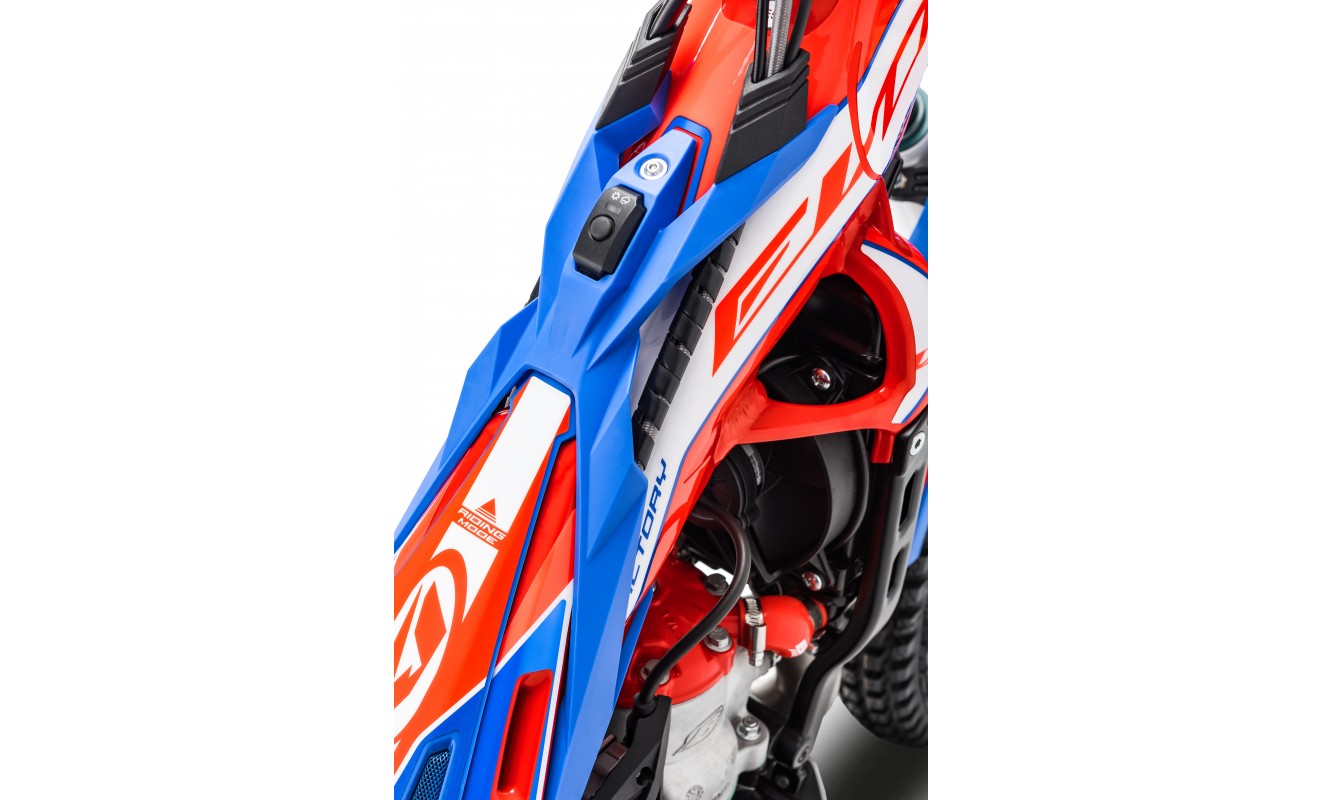

  • Lanyard kill switch: for uncompromised safety when riding the bike.
  • Chain adjusters, handlebar end plugs and footpegs with black anodised finish: these are long-lasting, lightweight components, while the non-slip steel pins on the footpegs ensure maximum grip.
  • Version-specific radiator hoses in red silicone: offering improved cooling performance, these components also give the bike a thoroughbred racing look.
  • Galfer racing brake discs: these discs combine superior braking power with extremely light weight, which contributes to reducing unsprung mass and maximising the agility of the bike.
  • BrakTec brake and clutch master cylinders.
  • Rear brake calliper with anti-vibration system for pads.

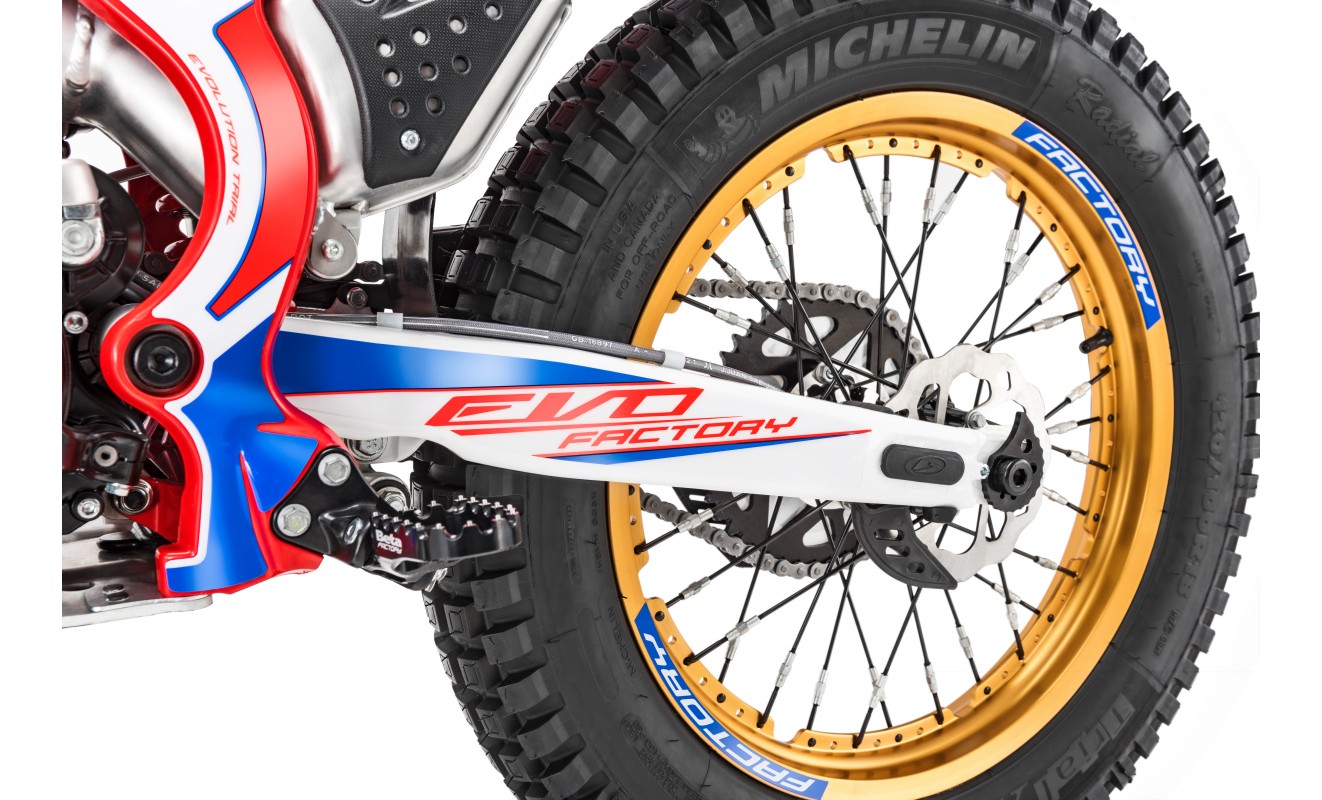

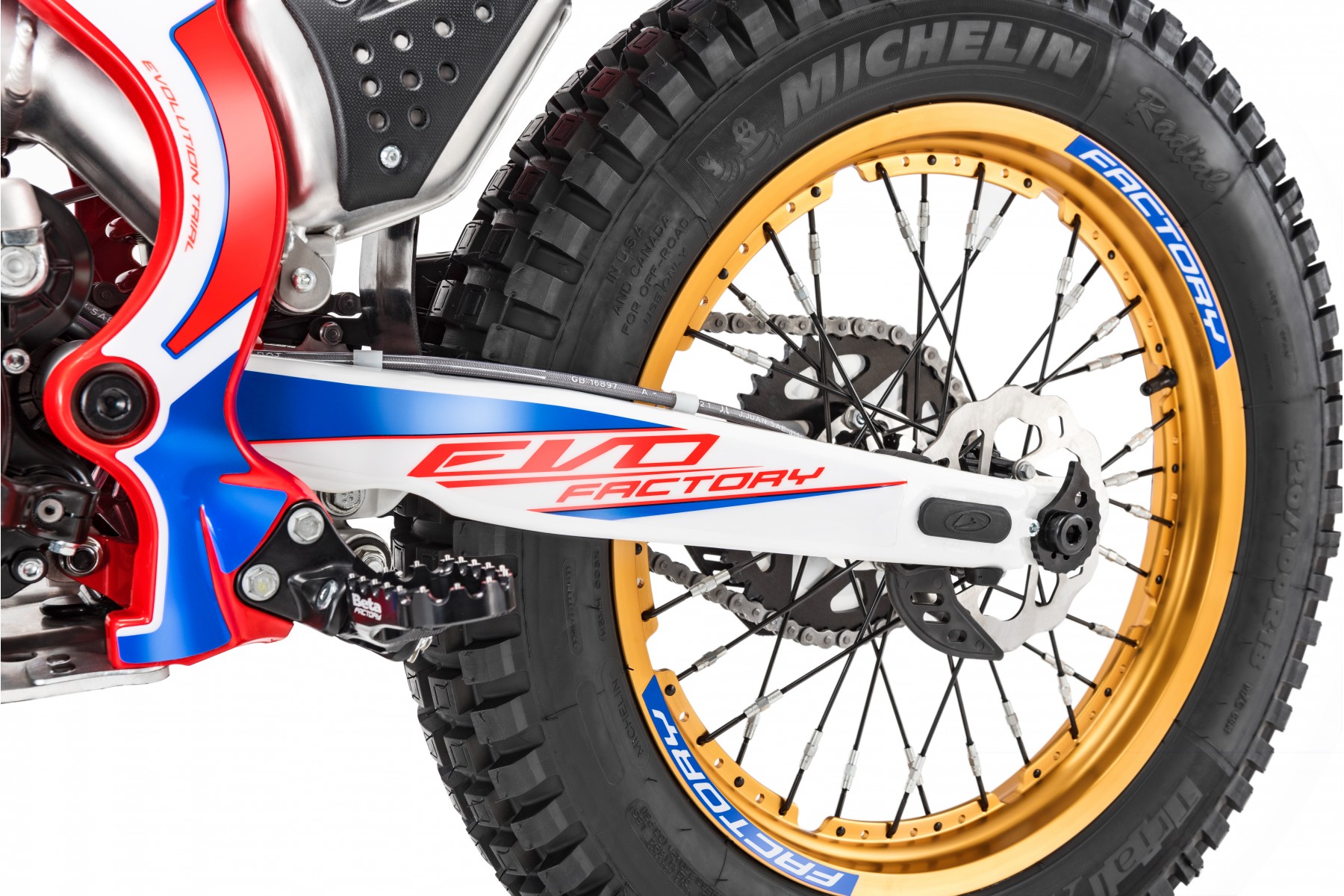

  • Excel Oro wheels.
  • Michelin X-light tyres: for unparalleled grip in every situation.

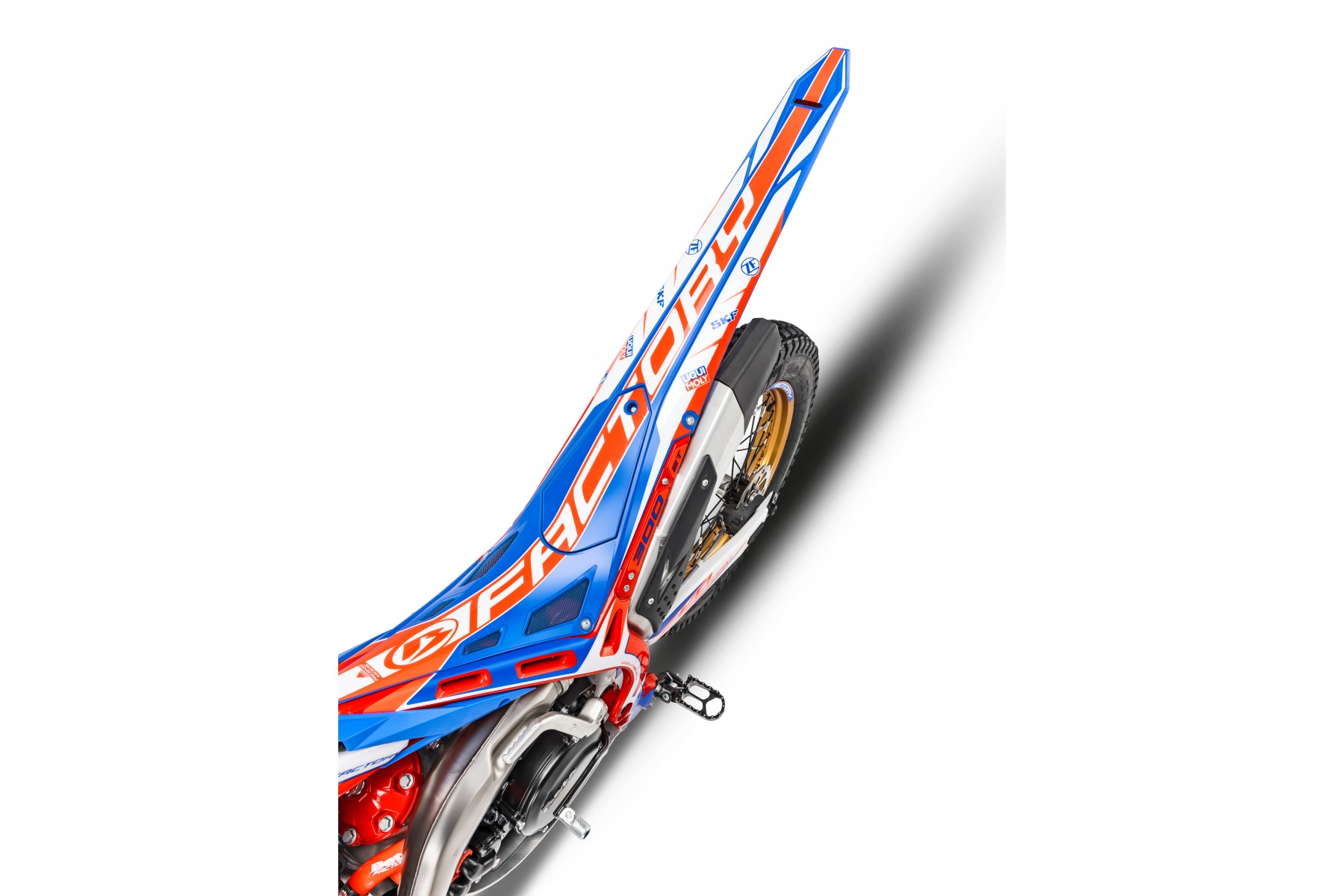

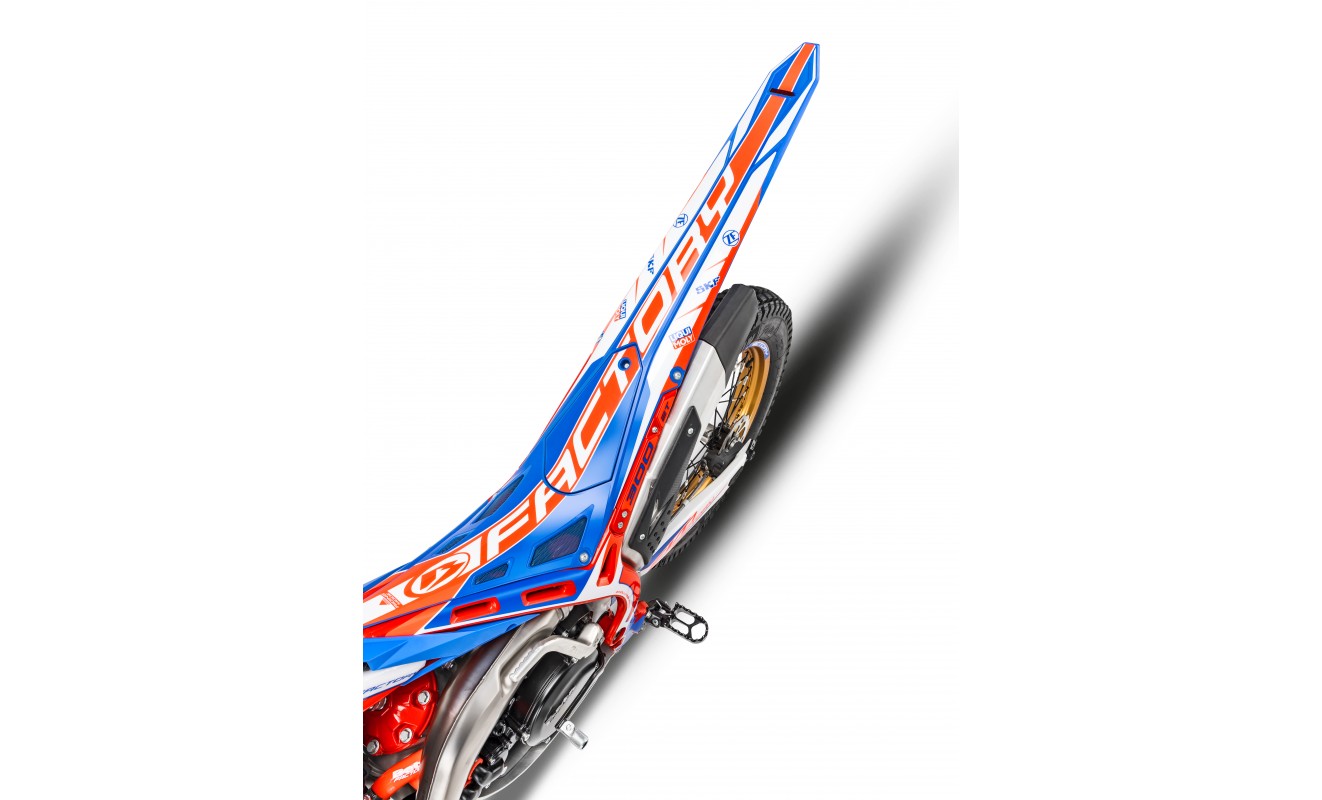

  • New graphics: as always, the new model year comes with all-new graphics, making sure that the bike has the looks to match its class-beating performance. The EVO Factory MY 22 boasts a red, blue and white colours scheme, which is complemented by the red hydroformed frame and the black and gold details to create a no-compromise racing look.


AVAILABILITY

Late February/early March

TECHNICAL DATA

Chassis

Max Height 1115 MM
Frame Hydroformed Alloy
Wheelbase 1305 MM
Max Length 1990 MM
Max Width 850 MM
Ground Clearance 310 MM
Footrest Height 348 MM
Fuel Tank Capacity 2.8L
Front Suspension Hydraulic fork with ø 38 mm shaft
Rear Suspension Hydraulic monoshock

Engine

Type Single-cylinder, 2-stroke, liquid cooled, lamellar induction in the crankcase
Bore 54 MM
Stroke 54.5 MM
Displacement 124.8 CC
Starter kickstart
Induction System Induction Reed
Lubrication mix with fuel 1,5 % (synthetic oil)
Carburettor Keihin PWK 28
Clutch Wet multi-disc with cush drive rubber
Transmission 6 speed
Engine Oil SAE 10W/30
